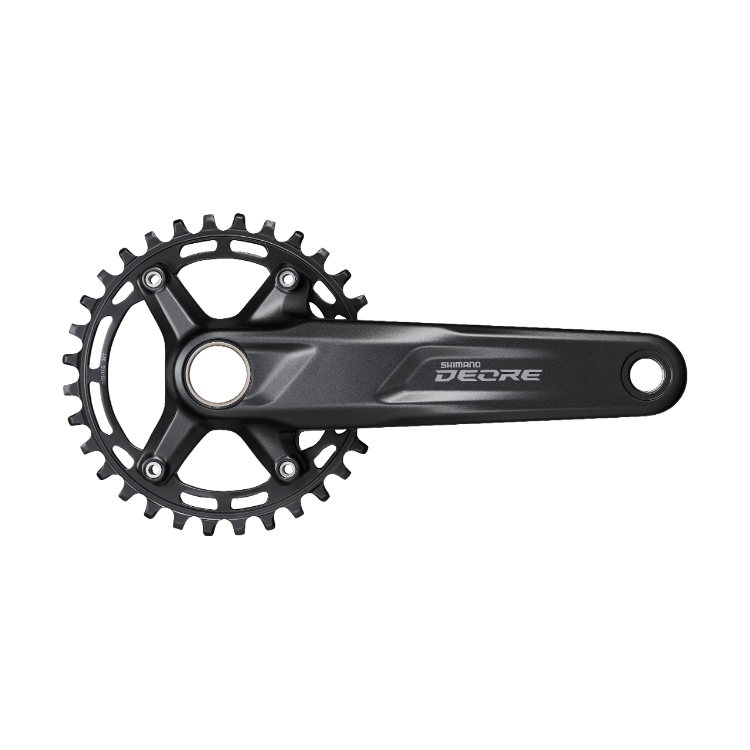

| MODEL NO | FC-M5100-1 |
|---|---|
| SERIES | DEORE M5100 Series |
| Color | Series color |
| Rear speeds | 11/10 |
| Compatible chain | HG 11-speed, HG-X 10-speed |
|---|---|
| Chain line (mm) | 52 |
| O.L.D.|Thru (mm) | 142, 148 |
| O.L.D.|QR/Nut (mm) | 135, 141 |
| P.C.D. (mm) | 96 |
| Spider/Gear arms | 4 |
| Chainring combination | 30T, 32T |
| Q-factor (mm) | 178.5 |
| Crank arm length (mm)|170 | ✔ |
| Crank arm length (mm)|175 | ✔ |
| Optional chain guard|Without chain/bash guard | ✔ |
| 2-PIECE CRANKSET | ✔ |
| Compatible bottom bracket type|Outboard | ✔ |
| Recommended bottom bracket|Threaded (normal) | BB-MT501 |
| Recommended bottom bracket|Press-fit | BB-MT500-PA |
| Threaded bottom bracket shell width (mm)|68 | ✔ |
| Threaded bottom bracket shell width (mm)|73 | ✔ |
| Crank fixing screw included | ✔ |
